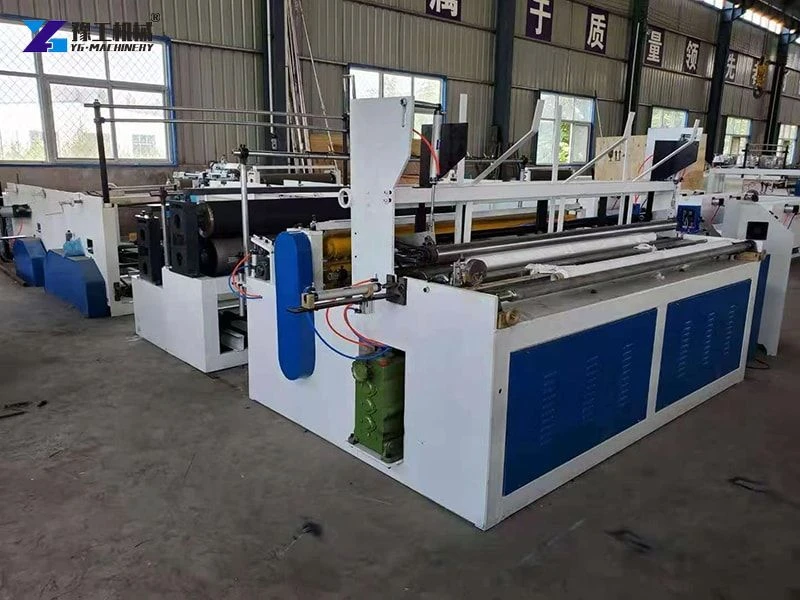

Toilet Paper Rewinding Machine
Toilet paper rewinding machine plays an important role in tissue paper production line. It usually works with toilet paper cutter, and packaging machine so as to get smaller roll of tissue paper. Equipped with PLC computer interface, the machine is simple to operate.
Description
Toilet paper rewinding machine completes automatic paper loading, embossing, punching, rewinding, trimming and glue spraying, and sealing. The thickness and tightness of the paper roll are adjustable. Cored and coreless rolls can be made. Maximum paper width is 1800. Various patterns are pressed on the base paper. The patterns can be customized and will have a good expansion effect on the paper. And there is a cutting device to cut the long paper in large rolls into small rolls.
Technical Data
|
Model |
1575/1880 |
|
Paper width |
1575/1880mm |
|
Base diameter |
Φ1200mm (please specify) |
|
Jumbo roll core diameter |
Φ76 (please specify) |
|
Product diameter |
Φ40-200mm |
|
Paper backing |
1-4 layer, general chain feed or continuously variable transmission feed paper |
|
Punch |
2-4 knife, spiral cutter line |
|
Hole pitch |
Positioning of belt and chain wheel |
|
Control system |
PLC control, variable frequency speed control, touch screen operation |
|
Product range |
Core paper, non core roll paper |
|
Drop tube |
Manual, automatic (optional) |
|
Non core roll paper |
Automatic core pulling |
|
Production speed |
150-280m/min |
|
Spray, cutting and rewinding |
Automatic |
|
Finished product launch |
Automatic |
|
Point moving mode |
Before and after the point moving |
|
Power configuration |
380V, 50Hz |
|
Required air pressure |
0.5Mps |
|
Embossing |
Single embossing, double embossing (steel roller to wool roller, steel roller) optional |
|
Dimension |
6200-7500*2600-3200*1750mm |
|
Weight |
2900-3800kg |
Features and Characteristics
Toilet paper rewinding machine adopts PLC computer programming, automatic paper loading, automatic slitting, maximum cutting length 2200. Automatic paper feeding, automatic material sorting, bagging and sealing are integrated. Only manual bagging is required, and the finished product is packaged and sent out automatically. 5-15 times per minute. Besides, there are other solutions for 2 rows, 3-4 rows available if needed.
