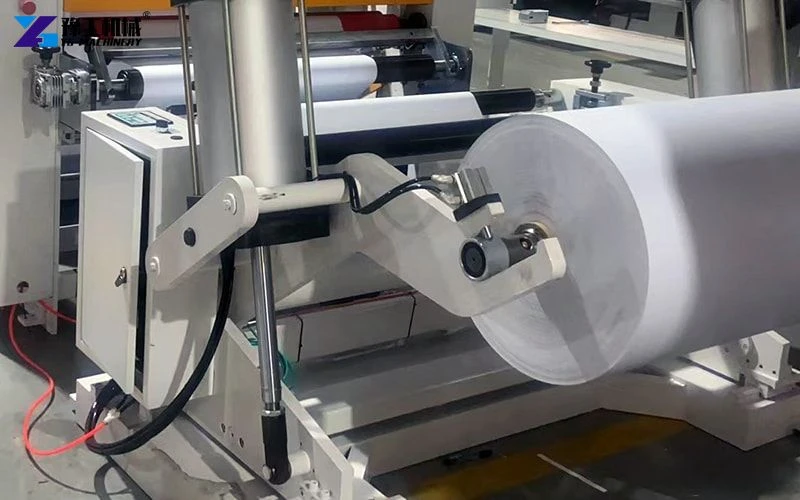

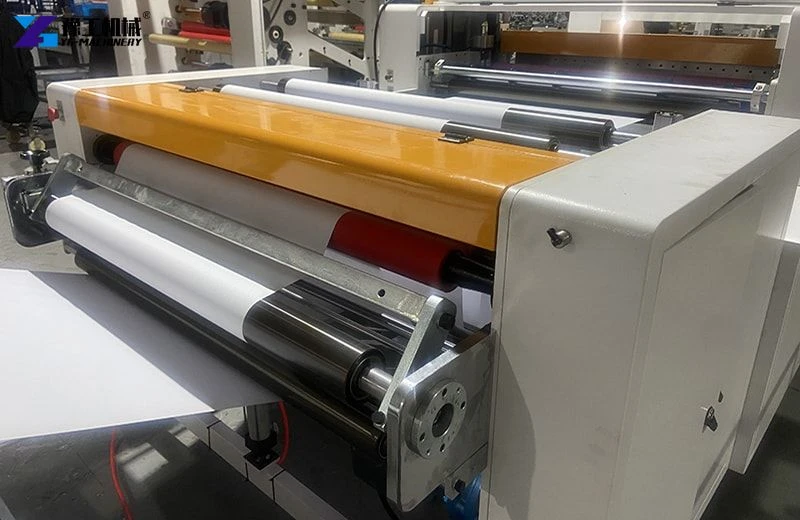

Paper Roll Cutter Machine
Paper roll cutter machine means the equipment to process roll of paper to sheets automatically. The equipment usually is used to cut various rolls of paper to sheets in paper product processing industry, paper printing, and paper packaging industry, etc.
Description
The Paper Roll Cutter Machine is a device that accurately cuts large rolls of base paper into small rolls according to a set width. It is mainly used for size pre-processing before printing, packaging, and paper processing.
Machine Technical Data
|
Model |
YGB-800 |
YGB-1100 |
YGB-1400 |
YGB-1600 |
|
Max. Web width |
800mm |
1100mm |
1400mm |
1600mm |
|
Max. Unwinder roll diameter |
Φ1400mm |
|||
|
Cutting length |
20-1200mm (Cutting length can be customized from 1300-1600mm) |
|||
|
Cross cutting speed |
30-200times/min |
|||
|
Precision of cross cutting |
±0.2mm |
|||
|
Cutting thickness |
30-500g/m² |
70-500g/m² |
||
|
Max. Pile stack height |
Max. 50mm |
|||
|
Total power |
8kw |
8kw |
10kw |
14kw |
|
Machine weight |
3000kg |
3300kg |
3800kg |
4500kg |
|
Overall dimension |
5050*1500*1850mm |
5050*1900*1850mm |
5050*2200*1850mm |
5050*2500*1850mm |
Characteristics and Features
Flexible Compatibility with Wide Paper Rolls
The Paper Roll Cutter Machine offers a variety of effective widths, ranging from 800mm to 1600mm. Its widened paper guide and automatic centering mechanism ensure stable handling of large roll paper sizes, accommodating diverse production requirements.
High-Frequency Servo Cutting Mechanism
The servo-controlled cross-cutting unit, combined with a highly rigid blade design, achieves a cutting frequency of up to 200 cuts/minute, maintaining ±0.2mm accuracy while improving continuous processing efficiency, making it suitable for high-speed production scenarios.
Stable Handling of Heavy-Weight Paper
The machine is equipped with a pressurized auxiliary feeding system, enabling stable cutting of paper from 30g/m² to 500g/m². This reduces slippage and uneven feeding issues with heavyweight materials, ensuring consistent cutting and smooth stacking.
CNC Intelligent Cutting Length Adjustment
The cutting length is set and adjusted in real time via the PLC system, ranging from 20mm to 1200mm, and can be expanded to 1600mm. Synchronous servo positioning technology improves switching efficiency.
FAQ
Q: What paper weight range can the Paper Roll Cutter Machine cut?
A: The machine supports cutting paper from 30g/m² to 500g/m², operating stably for both thick and thin paper without the need to replace core components.
Q: Is the cutting length flexibly adjustable?
A: The cutting length is set via the PLC from 20 to 1200mm, and can be expanded up to 1600mm to meet the needs of various order sizes.
Q: Will faster cutting speeds affect accuracy?
A: Utilizing a servo control system, it can achieve cutting speeds of up to 200 cuts/minute while maintaining a high accuracy of ±0.2mm.
Q: Can the machine handle wider paper rolls?
A: It supports a maximum width of 1600mm and is equipped with automatic centering and wide paper guides to accommodate large paper rolls.
Q: Is the paper prone to shifting after stacking?
A: It is equipped with a stable press mechanism and anti-slip conveyor to ensure neat stacking and is suitable for subsequent automated handling.
